Getting Started Guide for Truvami Smart Label

Step-by-step instructions for setting up the Truvami Smart Label.

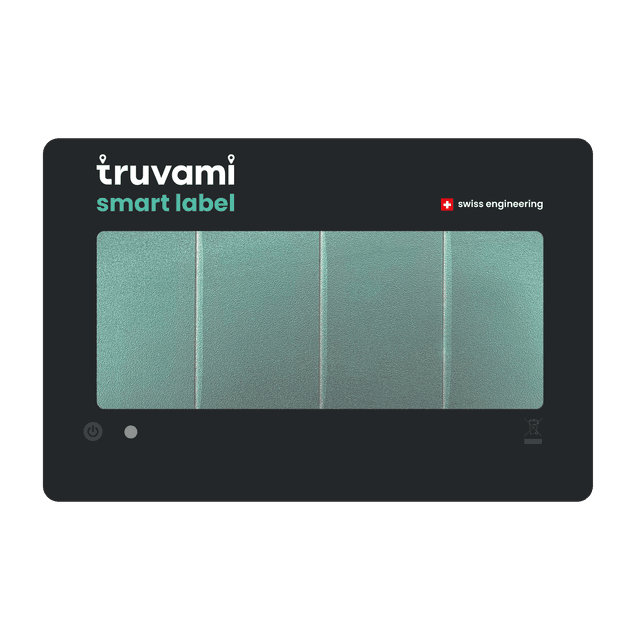

Truvami Smart Label Tracker

Before you start

The Smart Label is powered by ambient light using integrated organic photovoltaic (OPV) technology. Energy is stored in an internal 3.8 V, 450 mAh LiPo battery.

For ambient-light charging, a constant illumination of approximately 1000 lux is recommended. The device can also be charged via USB Type-C.

The supported charging temperature range is 0 °C to 45 °C.

Activate your device

1. Make sure the Smart Label has sufficient charge

The Smart Label harvests energy from ambient light using its integrated organic photovoltaic (OPV) surface.

For charging, a constant illumination of approximately 1000 lux is recommended. The device can also be charged using the USB Type-C connector.

The supported charging temperature range is 0 °C to 45 °C.

2. Activate the Smart Label

To activate the Smart Label, short press the button once.

After activation, the device starts its normal operation and attempts to connect to the LoRaWAN network.

3. Associate the Smart Label with your account

The Smart Label supports two methods for commissioning:

  • Scan the QR code on the device.
  • Use NFC by holding a compatible smartphone close to the NFC area of the Smart Label.

Follow the commissioning flow to associate the Smart Label with your account.

4. Verify the network connection

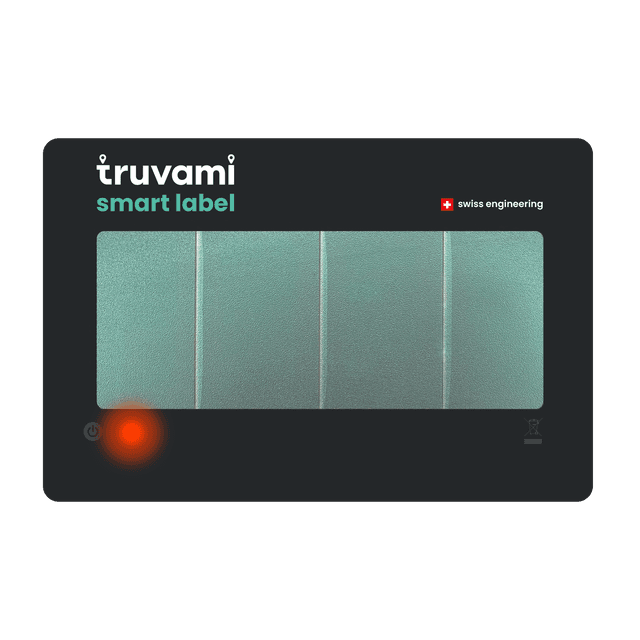

The Smart Label uses its red/green status LED to indicate the LoRaWAN network join status.

Once the device has joined the network and has been associated with your account, it is ready for normal operation.

Button interactions

The Smart Label uses a single button for common device actions.

ActionButton interaction
Activate the deviceShort press when the device is not active
Check battery statusShort press during normal operation
Create a waypointPress and hold for 2 seconds
Start BLE pairingPress and hold for 5 seconds
Reset the devicePress and hold for 10 seconds

Charging

The Smart Label supports two charging methods:

Ambient light

The integrated OPV surface harvests energy from ambient light. For charging, a constant illumination of approximately 1000 lux is recommended.

Depending on the tracking frequency and available light, the Smart Label can operate autonomously without requiring external charging.

USB Type-C

The internal battery can also be charged using the USB Type-C connector.

Only charge the device within the specified charging temperature range of 0 °C to 45 °C.

Troubleshooting

Check the battery status

Short press the button to request a battery status indication from the red/green status LED.

If the battery level is low, expose the Smart Label to sufficient ambient light or charge it via USB Type-C.

Check the network connection

The status LED indicates the LoRaWAN network join status.

If the Smart Label does not connect to the network, make sure the device has sufficient charge before trying again.

Reset the Smart Label

To reset the device:

  1. Press and hold the button for 10 seconds.
  2. The status LED provides the reset indication.
  3. Allow the device to restart and reconnect to the network.

Need Support?

For support, please submit a ticket. We will respond as quickly as possible.
